รางเลื่อนอลูมิเนียม
GENERAL
UTA Light Tracks System (Aluminium) installations are of modular design. The basic construction kit consists of simple, well-engineered components. Standardized dimensions ensure rapid erection and allow existing installations to be easily modified or extended. All the components are batch-produced using modern series production machinery and methods:
- Non-driving rail system for less cost and maintenance free for major components including trolley.
- Trolley is totally protected by aluminium track.
- Easy for expansion modification of existing line.
- Comfortable and easy for operation and noise free during traveling.
- Offering flexibility against building obstruction.
- Simple, fast and safe installation than conventional welding construction.
- Standard fittings save cost, easy and fast dismantle for relocation.
- Reusable all parts.
- Range of product 50~2,000 kg depending on configuration.
- Curved track is another attractive advantage.
- Suitable for building power supply, air supply system and transportation of various tools for assembly line application.
UTA ALUMINIUM TRACK SYSTEM Single girder
Single girder suspension crane
Double girder suspension crane
Diagram for crane and track selection (Aluminium)
Diagram: Spacing between supports, spans
Structural dimensions for cranes and monorail tracks (Aluminium)

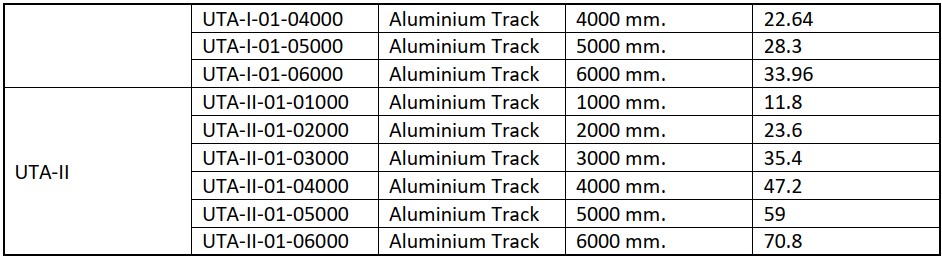

PART NO. 1 ALUMINIUM TRACK
PART NO. 79 BRACING FRAME
Pro-Track Aluminum Track System
Aluminum Track System
Aluminum track comes as a pre-engineered, modular structure in kit format that the overhead rail system can be quickly configured rail system can be quickly configured, installed, set up and take down by purchaser or plant personnel with considerable savings in both time and cost.
U-TECH INTER offer rail system components to best suit your material handling needs. There are many benefits to using the extremely versatile aluminum track, A light weight option that is ideal for long rail system spans and feature.
SPECIFICATION
- Reduces the accumulation of dirt and grime on internal rolling surface
- Strong backing for increased productivity
- Low investment costs
- Flexible design allows extensions, modifications of existing line and against building obstruction
- Reduction in internal transport time
- Reduction in operator’s fatigue
- Comfortable and easily handled and manipulator with out traveling noise
- Clean, maintennance free operation because no lubrication required
- Standard fittings are bolted not welded construction. So easy, fast and safe to install and take down
- For relocate by reusable all parts. The track is self-cleaning and won’t corrode or flake off. It is corrosion resistant, which makes it great for outdoor use.
